MA04D

详细说明

Features

1.Standard DIN rail mount, plug-in terminals, easy to install, serial connection for different device.

2.Controller with dual LED display, various indicators, four setting buttons, the configuration can be carried out even without master device

3.Modbus RTU communication protocol, support 03H read, read multiple points, 06H write single point, 10H write multiple points, 03H read maximum 36 bytes one time, and 10H write 20 bytes one time

4.Thermocouple inputs, 0.3% accuracy

5.24VDC Power suplly for maximum safety

6. ℃/℉ display selectable

7.Maximum 15 units can be saisy chined together

8.Heating or cooling selectable

9.Four outputs,PID control mode or ON/OFF control mode selectable,direct/reverse control configurable for each loop

10.Auto/Manual control bumpless transfer

11.Soft-start for analog output

12.Run/stop function

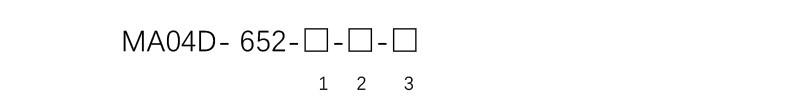

Ordering information

CODE:

1. Factory default input

Input Code	Input type and range
K	K -30 to 1300℃/-20 to 2372 ℉
E	E -30 to 600℃/-20 to 1112 ℉
J	J -30 to 800℃/-20 to 1472 ℉
N	N -30 to 1300℃/-20 to 2372 ℉
W	Wu3_Re25 600 to 2000℃/1000 to 3632 ℉
S	S 0 to 1600℃/0 to 2912 ℉
T	T -30 to 400℃/-20 to 752 ℉
R	R 0 to 1700℃/0 to 3092 ℉
B	B 200 to 1800℃/400 to 3272 ℉

Remark”The accuracy for S and R is not accurate if the temperature lower than 200℃

2. Main output OP1/OP2/OP3/OP4

OP1 and OP2 output must be same,OP3 and OP4 must be the same

Code	OP1/OP2	OP3/OP4
1	Relay 3A/250V	Relay 3A/250V
2	Voltage pulse 12VDC	Voltage pulse 12VDC
3	Voltage pulse 12VDC	Relay 3A/250V
4	Relay 3A/250V	Voltage pulse 12VDC
9	Analog output DA	Analog output DA
